Product Details
Radiative Cooling Film
Product Introduction
The film composed of polymer material and inorganic functional material. The film can achieve a significant cooling effect with its high infrared emissivity (8μm-13μm) which allows the film transmits the heat to cold outer space through atmospheric window, meanwhile, the film features a highly solar reflectivity which allows the film absorbs solar energy by minimum. The cooling process is rapid and efficient, and most importantly without energy consumption. By applying Radi-Cool on the surface, it can turn roof, window, and wall to act as a kind of air conditioning system by producing cooling power from solar radiation and creates efficient radiative heat transfer channels between the objects and the Cold universe without using any energy input.
Product Colours

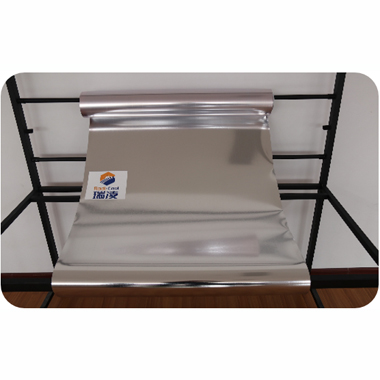

◉ Reflective (Silver Colour) or

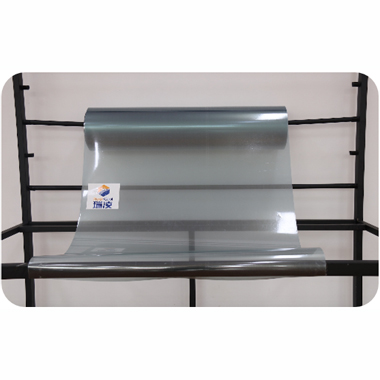

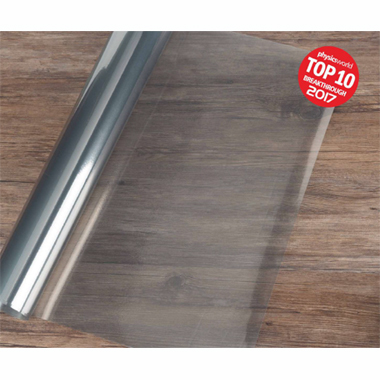

◉ Transparent (No Colour)
Product Features
◉ Cooling: Efficient radiative cooling, insulating solar energy
◉ Environmental protection: No additional energy consumption
◉ Reflection: Reflection, blocking sunlight
◉ Self-Cleaning: Hydrophobic, oleophoic, antifouling, and easy-cleaning
◉ Water resistance: No water seepage, no wet stains
◉ Dust resistance, easy-cleaning: Water-repellent and do not attract dust
◉ Durable: Highly anti-UV, anti-static and anti-corrosion
Product Specifications
◉ Made from polymer material and inorganic functional material
◉ Size: 1.225m(W) * 50m(L) per roll or 0.35m(W) * 100m(L) per roll
◉ Thickness: 200μm
◉ Net weight: [to be confirmed]
* For accurate estimation on the quantity to be consumed, please contact us to schedule a site visit.
| Feature | Performance |
|---|---|
| Heat Reflective | >90 (SR) (%) [Reflective Film] |
| Solar Absorption | 20 (SAV) [W/m²] [Transparent Film] |
| Cooling Effect | 100~150 [W/m²] |
| Atmospheric Window Emissivity | >90% |
| Refrigeration | Efficient cooling, solar energy isolation |
| Environmental Protection | No additional energy consumptions |
| Self-Cleaning | Hydrophobic, Oleophobic, Antifouling, Easy to clean |
| Waterproof | Grade 1 waterproof |
| Dust Proof | High-quality water-repellent material. can be easily wiped with a damp cloth and no dust after wiping. |
| Durable | High UV resistance, Anti-static , Anti-corrosion. |
Product Application
◉ Radi-Cool Transparent Film can be directly attached to the exterior surfaces of structures that need illuminations, such as windows, facades glazings, and skylights.
Radi-Cool Transparent film installed on the glass roof of Ningbo International Convention and Exhibition Center at Ningbo, China.
After applying our transparent film, the inner temperature dropped by 6-8°C.
◉ Radi-Cool Reflective Film can be directly attached to opaque exterior surfaces of structures, such as building roofs, walls, automobile bodies, and LNG storage tanks.

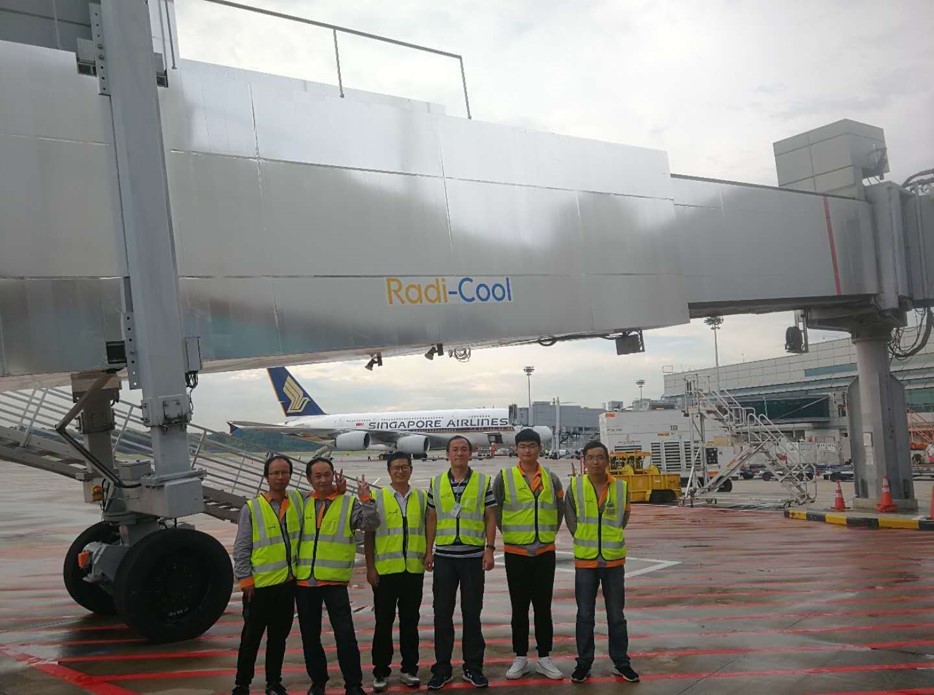

Radi-Cool reflective film installed on the roof and the sides of a passanger loading bridge at Changi Airport, Singapore.

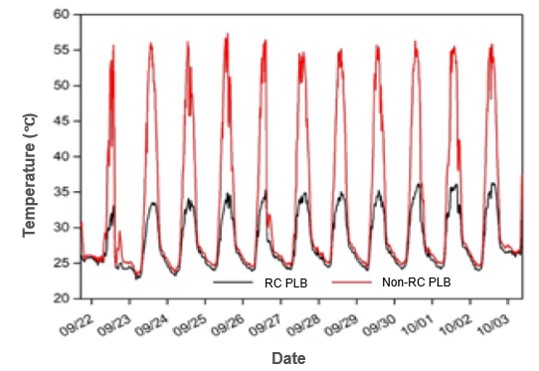

After applying our reflective film, the surface temperature of the passanger loading bridge dropped by 35°C.
